Tuerca hexagonal roscado en acero inoxidable
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Technical: Precision Casting and punch press
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Connection type: Female threaded
Gasket: buna(NBR),viton and Telfon
Application: oil,petroleum,chemical,water,gas,irrigation,papermaking,and beer,ect.
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1
Stainless steel hexagon cap
A pipe cap is used at the end of a pipeline to stop the flow of liquid.Stainless steel hexagon cap is easy to assemble ,fasten,and disassemble.Due to the good anti-rust and anticorrosion performance of stainless steel,the stainless steel hexagon cap can be used with stainless steel pipe for air, water, and natural gas applications. Max. pressure: 150psi or 300 psi.

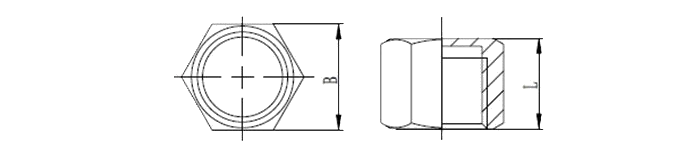

| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| B | 13 | 16.5 | 20 | 24.5 | 30 | 37 | 46.5 | 53 | 65 | 82 | 95.5 | 121.5 |
| L | 12.5 | 16 | 16.5 | 21 | 22.5 | 26 | 29 | 29 | 33.5 | 38.5 | 42 | 48.5 |
