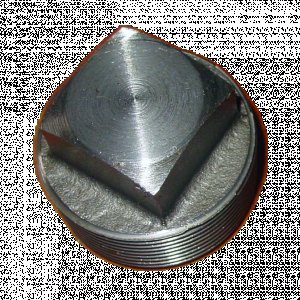

Manufacturer of ASME B16.11 3000LB, 6000LB, 9000LB Forged Pipe Fittings in China.
Porduct Name: elbow, tee, cap, bushing, coupling, pipe nipple, hex, nipple, weldolet, threadolet, sockolet, socket, cap, cross, flangolet, union, swage nipple, etc..
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow,Tee,nipple,full coupling, half coupling,lateral,cross,cap, plug,hex head nipple, swage nipple,union,weldolet,sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Surface Treatment: Sand blasting, Anti-rust oil, Galvanized, Polished, black.
Wall thickness: SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material:
Stainless steel: A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, A182 F317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
Carbon steel: ASTM A105, A350LF2, Q235, St37, 20#, 16Mn, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70, A420 WPL6 etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C 276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.
Application: Petroleum Chemical,Refinery, Pharmacy Industry, Food & Beverage Industry, Sea Water Desalination,Paper Making, Shipbuilding Industry, Electric power, Offshore & onshore oil&gas, Mining Industry, Water Treatment, Mechanical Making, Chemical fertilizer etc.
Package: Cartons in wooden cases.
MOQ: to be negotiated.
Sample: Available
Price: >>DOWNLOAD the forged fittings newest price list from PRICE LIST AND TECH
Service: Customized OEM
Payment term: T/T or L/C
Delivery:7-30days according to order quantity.

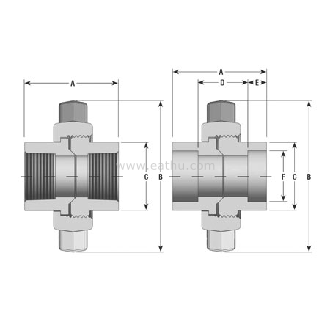

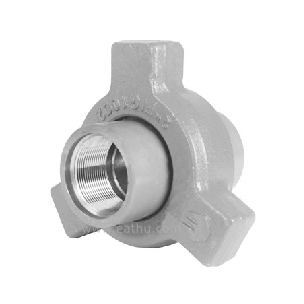

Lug Nut Union Dimension
CLASS 3000
| PIPE SIZE | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 1.875 | 1.984 | 2.297 | 2.891 | 2.906 | 3.031 | 3.484 | 4.063 | 4.484 | 8.031 |
| B | 2.563 | 3 | 3.625 | 4.25 | 5 | 5.625 | 6.375 | 7.188 | 8 | 10.359 |
| C | 1.031 | 1.031 | 1.484 | 1.813 | 2.188 | 2.469 | 3.031 | 3.656 | 4.406 | 5.453 |
| D | 1.125 | 1.125 | 1.297 | 1.891 | 1.904 | 2.031 | 2.234 | 2.813 | 3.234 | 6.531 |
| Emin | 0.375 | 0.375 | 0.5 | 0.5 | 0.5 | 0.5 | 0.625 | 0.625 | 0.625 | 0.75 |
| F | 0.69 | 0.855 | 1.065 | 1.33 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 |
| Weight(LBS) | 0.59 | 0.91 | 3.12 | 2.28 | 3.48 | 4.66 | 7.07 | 11.4 | 15.42 | --- |
CLASS 6000
| PIPE SIZE | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | --- | 2.375 | 2.578 | 2.89 | 3.125 | 3.578 | 4.141 | --- | --- | --- |
| B | --- | 3.625 | 4.25 | 5 | 5.625 | 6.375 | 7.188 | --- | --- | --- |
| C | --- | 1.469 | 1.797 | 2.172 | 2.563 | 3.031 | 3.688 | --- | --- | --- |
| D | --- | 1.625 | 1.578 | 1.89 | 2.125 | 2.578 | 2.89 | --- | --- | --- |
| E | --- | 0.375 | 0.5 | 0.5 | 0.5 | 0.5 | 0.625 | --- | --- | --- |
| F | --- | 0.855 | 1.065 | 1.33 | 1.675 | 1.915 | 2.406 | --- | --- | |
| Weight(LBS) | --- | 1.95 | 2.84 | 3.96 | --- | 7 | 14.16 | --- | --- | --- |
Note:
1. Seating characteristics of MSS SP-83 Unions.
2. The "B" dimension is the diameter across the lugs of union nut.
3.Twin Lug design offered in sizes up to 3/4" Class 3000 & 1/2" Class 6000.
4. Tri-Lug design offered in sizes from 1" to Class 3000&3/4" to 2" Class 6000.
5. Quad-lug design offered in 4" Class 3000.
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.
Quality Assurance
At MetalGoods, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
