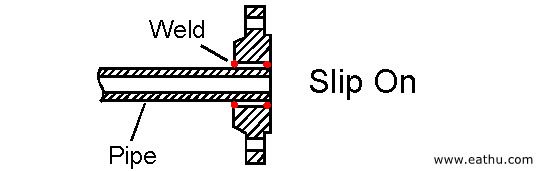

Dibujo técnico, tabla de dimensiones y peso para brida deslizante ASME / ANSI B16.5 Clase 150 2020/12/02 10:38:17


TuboBridaCentroCara elevadaPlantilla de perforaciónAprox. Peso
Nom.O DDJbhmgNumberlk
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKgs
1/2"0,843,500,880,440,621,191,3840,622,380,9
21,388,922,411,215,730,235,115,760,50,39
3/4"1,053,881,090,500,621,501,6940,622,751,2
26,798,627,712,715,738,142,915,769,90,56
1"1,3154,251,360,560,691,942,0040,623,121,7
33,4108,034,514,217,549,350,815,779,20,78
1 1/4"1,664,621,700,620,812,312,5040,623,502,3
42,2117,343,215,720,658,763,515,788,91,03
1 1/2"1,905,001,950,690,882,562,8840,623,882,9
48,3127,049,517,522,465,073,215,798,61,32
2"2,3756,002,440,751,003,063,6240,754,754,5
60,3152,462,019,125,477,791,919,1120,72,06
2 1/2"2,8757,002,940,881,123,564,1240,755,507,2
73,0177,874,722,428,490,4104,619,1139,73,28
3"3,507,503,570,941,194,255,0040,756,008,5
88,9190,590,723,930,2108,0127,019,1152,43,85
3 1/2"4,008,504,070,941,254,815,5080,757,0010,6
101,6215,9103,423,931,8122,2139,719,1177,84,81
4"4,509,004,570,941,315,316,1980,757,5011,7
114,3228,6116,123,933,3134,9157,219,1190,55,30
5"5,56310,005,660,941,446,447,3180,888,5013,4
141,3254,0143,823,936,6163,6185,722,4215,96,07
6"6,62511,006,721,001,567,568,5080,889,5016,4
168,3279,4170,725,439,6192,0215,922,4241,37,45
8"8,62513,508,721,121,759,6910,6280,8811,7526,7
219,1342,9221,528,444,5246,1269,722,4298,512,1
10"10,7516,0010,881,191,9412,0012,75121,0014,2536,3
273406,4276,430,249,3304,8323,925,4362,016,5
12"12,7519,0012,881,252,1914,3815,00121,0017,0057,7
323,8482,6327,231,855,6365,3381,025,4431,826,2
14"14,021,0014,141,382,2515,7516,25121,1218,7576,2
355,6533,4359,235,157,2400,1412,828,4476,334,6
16"16,023,5016,161,442,5018,0018,50161,1221,2598,7
406,4596,9410,5 36,663,5457,2469,928,4539,844,8
18"18,025,0018,181,562,6919,8821,00161,2522,75108
457,2635,0461,839,668,3505,0533,431,8577,948,9
20"20,027,5020,201,692,8822,0023,00201,2525,00136
508698,5513,142,973,2558,8584,231,8635,061,9
24"24,032,0024,251,883,2526,1227,25201,3829,50191
609,6812,8616,047,882,6663,4692,235,1749,386,9
